Traction series FJG7



Designed for excellent performance and user friendliness

Description

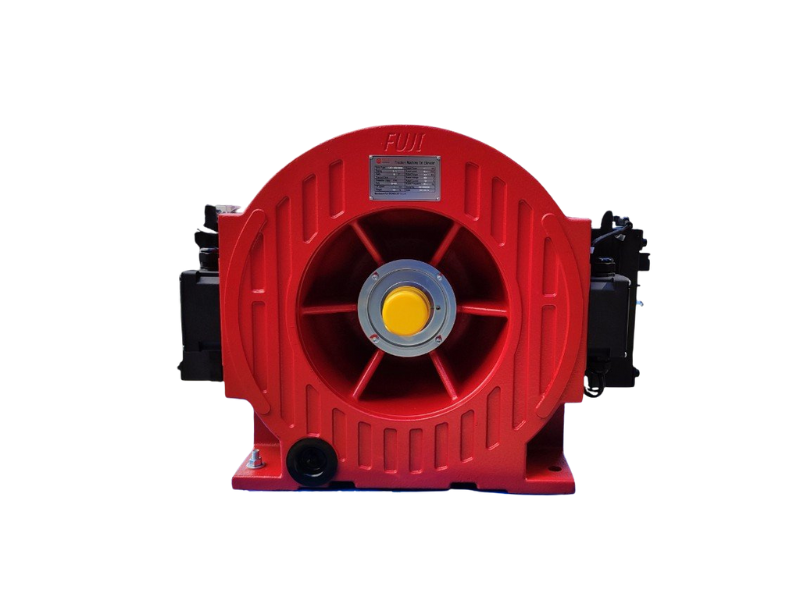

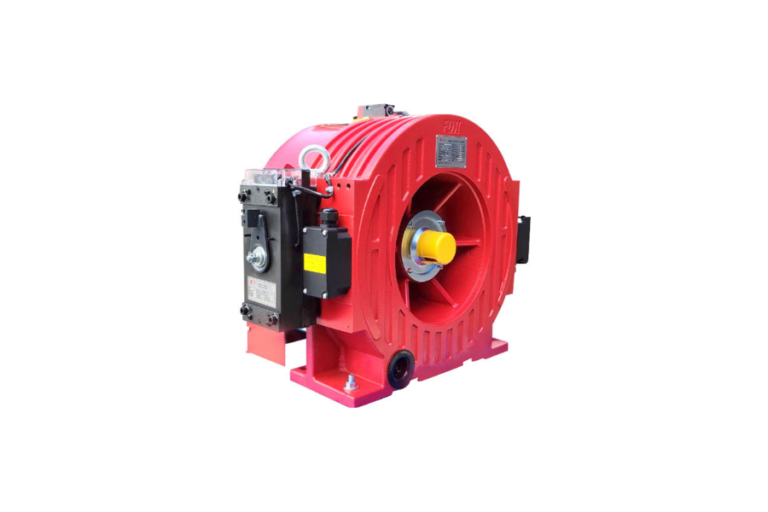

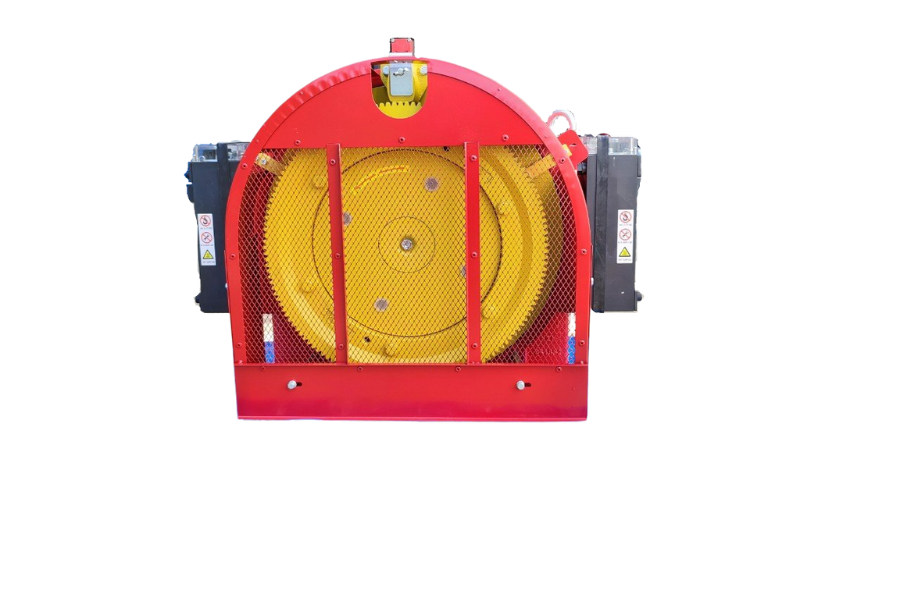

  1. FJG7 series Series is Fuji Technology of standard outer rotor type PM gearless traction machine.
  2. It is very cost-e ective, and is a classic model with largest sale & ownership volume.
  3. Short axial length, suitable for machine roomless elevator application high effciency with high torque density design.
  4. Small size, simple structure with high utilization of materials.
  5. Machine low speed operation smooth, with low noise and small vibration.
  6. Use block type armless brake with high reliability.
Technical Information
  • Rated Load: 500 – 1600 kg
  • Rated Speed: 1.0-1.75 m/s Max
  • Shaft Load: 3000-6000 kgs
  • Traction Ratio: 2:1
  • Dia. of Sheave: 400-450 mm with ERN1387
  • Encoder with hand winding, no remote releaser
Load 500 – 1000kg
Load 1150kg
Load 1350kg
Load 1600kg



Specification Table
